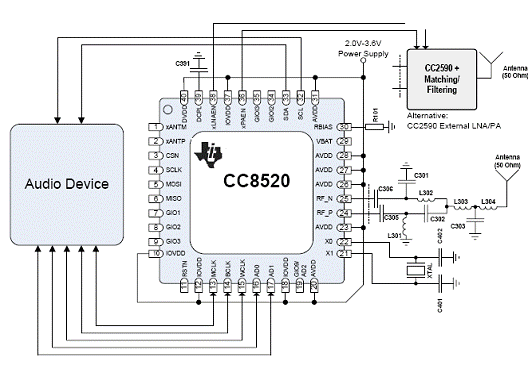

CC8520 PurePath无线平台,是高性价比和低功耗的解决方案,最适合用于高质量数字音频的无线传输. CC8520内置了无线音频传输协议,能控制所选择的外接音频设备,支持两个音频通路,空中数据速率5Mbps,可编输出功率高达+3.5dBm,接手灵敏度-83dBm,音频延迟低到20ms,适用于多种无线电频率规范: ETSI EN 300 328 和EN 300 440 class 2 (欧洲), FCC CFR47 Part 15 (美国)以及ARIB STD-T66 (日本). CC8520主要用在无线高质量数字音频,无线点对点音频链接,无线耳机和无线扬声器.本文介绍CC8520主要特性, 应用电路和CC85xxEM参考设计电路图以及材料清单(BOM).
The PurePath™ Wireless platform is a cost-effective and low-power solution optimized for wireless transmission of high-quality digital audio.
The CC8520 includes a robust built-in wireless audio transmission protocol and can control selected external audio devices. Utilizing numerous coexistence mechanisms allows the CC8520 to avoid interfering with, or being interfered by other 2.4 GHz radio systems. The CC8520, which supports 2 audio channels, is the first device in the PurePath™ Wireless platform.
The CC8520 operates autonomously, and can be used with or without an external MCU. An external host processor can be connected through SPI and control some aspects of its operation. The CC8520 interfaces easily with other TI audio ICs and DSPs (using I2S and DSP/TDM interfaces).
CC8520主要特性:
Built-in audio protocol
- CD-quality uncompressed audio
- Excellent robustness and co-existence through multiple techniques
- Adaptive Frequency Hopping
- Forward Error Correction
- Buffering and Retransmission
- Error Concealment
- Optional high quality audio compression External system
- Seamless connection and control of selected TI audio codecs, DACs/ADCs and digital audio amplifiers using I2S and I2C
- HID functions like power control, binding, volume control, audio channel selection can be mapped to I/Os
- RoHS compliant 6mm x 6mm QFN-40 package RF section
- 5 Mbps over-the-air data rate
- Bandwidth-efficient modulation format
- Excellent link budget with programmable output power up to +3.5 dBm and -83 dBm sensitivity
- Seamless support for CC2590 range extender (+11dBm output power, -86dBm sensitivity)
- Suited for systems targeting compliance with worldwide radio frequency regulations: ETSI EN 300 328 and EN 300 440 class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan)Digital audio support
- Digital I2S audio interface supports 1 or 2 audio channels
at sample rates of 32,40.275, 44.1 and 48 kHz, and supports 16 bit word-widths
- Audio latency down to 20 ms
- Data side-channel allows data to be sent alongside the audio between external host controllers Development tools
- PC-based PurePath™ Wireless Configurator (PPW Configurator) for CC8520 configuration
- CC8520 User’s Guide
- CC85XXDK audio development kit
- No software development needed
CC8520 应用:
- Wireless high-quality digital audio
- Wireless point-to-point audio link
- Wireless headphones
- Wireless loudspeakers
