图4.表面电容传感器等效电容电路

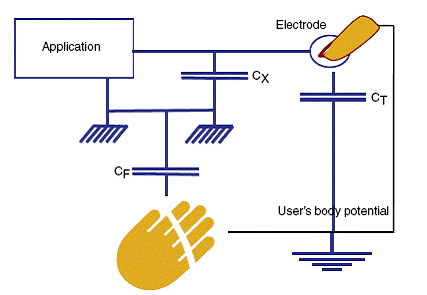

图5.手提应用等效电路图
STM8T14X-EVAL 评估板The STM8T14X-EVAL is an evaluation kit which introduces developers to STMicroelectronics STM8T141 touch and proximity capacitive sensor. It contains an STM8T141 evaluation board, the MB858, plus a set of preconfigured plug-in modules which allow to evaluate STM8T141 device performances in either touch or proximity detection (depending on the module which has been plugged in).
STM8T14X-EVAL 评估板主要特性:
The evaluation kit features are the following:
■ Touch detection with on-board PCB sensing electrode and 1.5 mm dielectric panel
■ Easy dielectric adjustment by stacking acrylic panels
■ Proximity detection with on-board PCB sensing electrode or plug-in antenna
■ Standalone power configuration using an on-board battery
■ External power supply through USB interface
■ Electrode grounding or shielding configured by jumper
The STM8T14X-EVAL kit includes:
● 1 STM8T141 evaluation board (MB858)
● 4 STM8T141 preconfigured plug-in modules (MB856)
● 1 antenna shielding cable
● 1 additional 3 mm acrylic panel

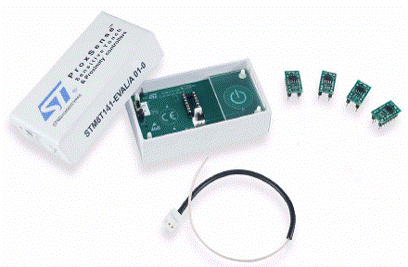

图6.STM8T14X-EVAL 评估板外形图

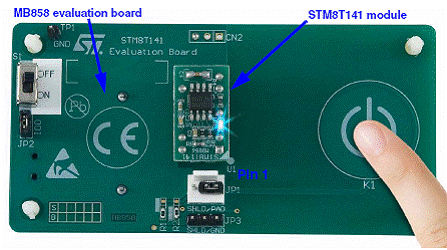

图7. MB858评估板和插入STM8T141模块

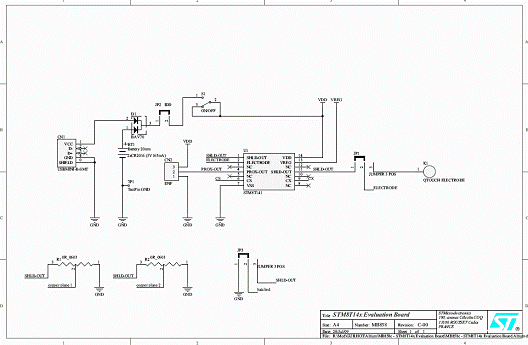

图8. STM8T141评估板(MB858)电路图

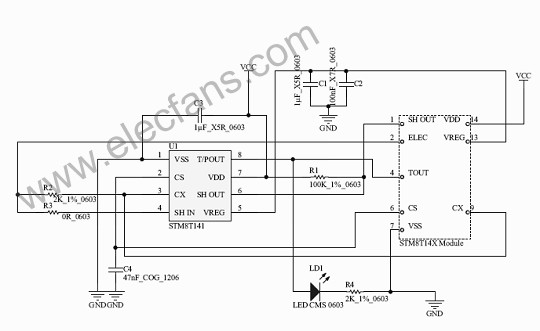

图9. STM8T141模块(MB858)电路图
