51单片机16*16LED点阵滚动显示
来源：本站整理  作者：佚名  2011-02-05 21:46:44



*

功能：LED16*16点阵滚动显示

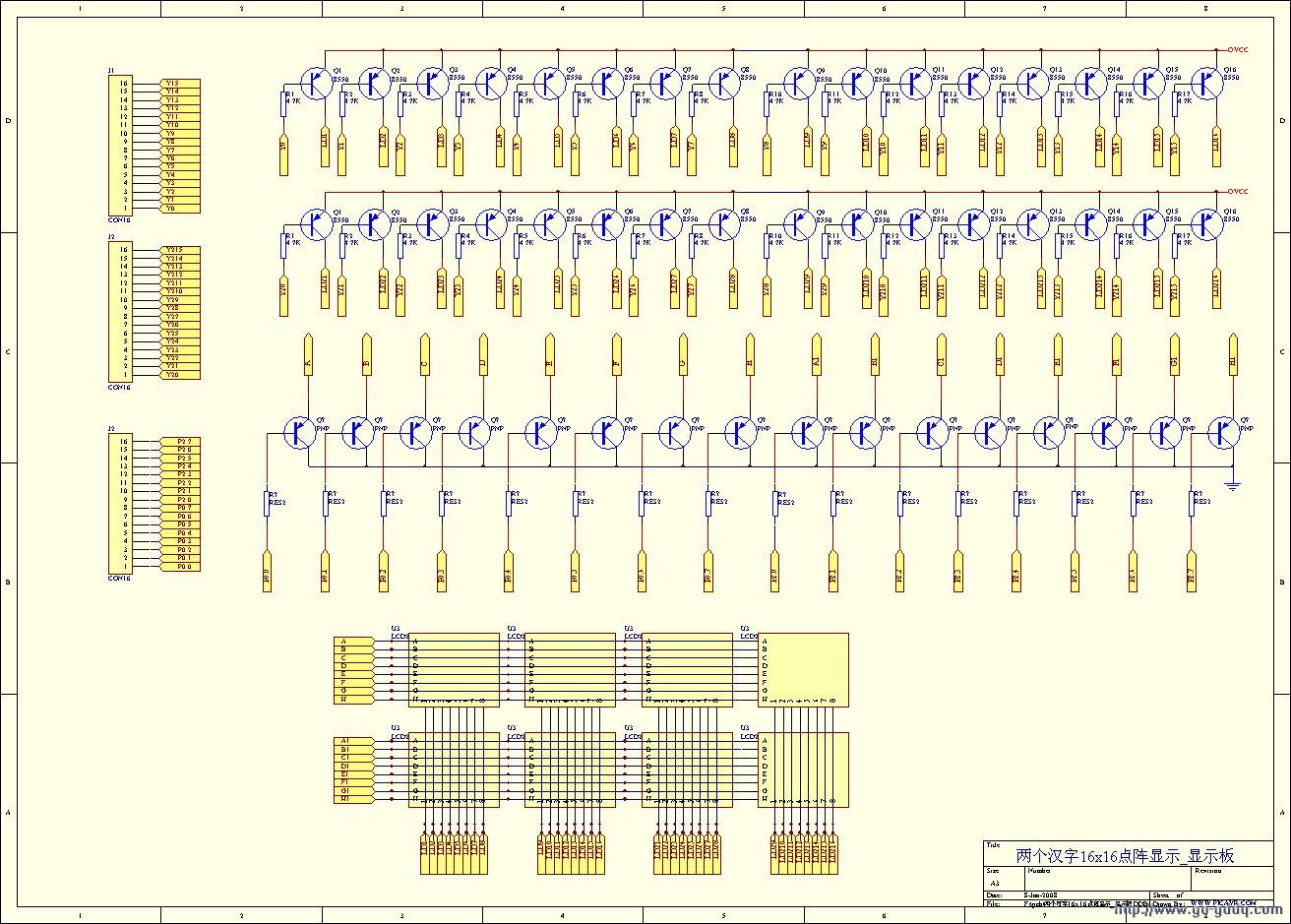

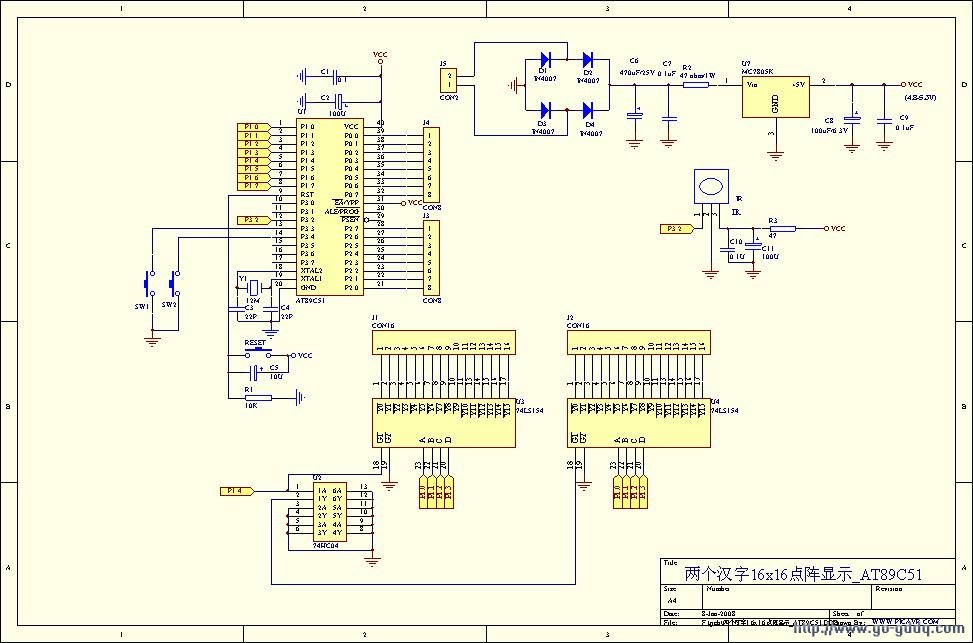

说明：74LS154用作发送数据，P0,P2口用来列选

看本程序最好的工具最好旁边有标号和语法着色，推荐keil或UltraEdit

懒人提示：要改成自己所要的显示内容，要怎么改？

1.要改显示内容改第23~92行代码，还有第119行代码，具体改法见下面注释

2.要改滚动速度改第102行代码

*/

/*头文件*/

#include<reg52.h>

#include<intrins.h>

/*宏定义*/

#define uchar unsigned char

#define uint  unsigned int

/*函数声明*/

void delay();

/*全局变量*/

uint lie; //列选标志

/**

字模:反显，纵向取模，开头和结尾均加入32个0xFF，用于改善屏滚动显示时循环的连贯性   **/

/**

杭州市公交公司K316路,开往武林广场,发车时间20:30,欢迎大家乘坐！  --  **  宋体, 12  **/

/**

当前所选字体下一个汉字对应的点阵为:  宽度x高度=496x16,  调整后为: 496x16          **/

uchar code text[1056]={

    //这里的数据为你要显示的内容的数据量+64（前后各32个0xff)

    0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

    //改显示内容以上两行别改

    0xEF,0xDF,0xEF,0x3F,0xE8,0xFF,0x00,0x00,0xED,0xFF,0xFE,0xFD,0xEF,0xF3,0xEC,0x0F,

    0x6D,0xFF,0x8D,0xFF,0xED,0xFF,0xEC,0x03,0xEF,0xFD,0xEF,0xFD,0xEF,0xE1,0xFF,0xFF,

    0xFF,0x7F,0xF8,0xFE,0xFF,0xF9,0xFF,0xE7,0x00,0x1F,0xFB,0xFF,0xFC,0xFF,0xFF,0xFF,

    0x80,0x01,0xF7,0xFF,0xF9,0xFF,0xFE,0x7F,0xFF,0xFF,0x00,0x00,0xFF,0xFF,0xFF,0xFF,

    0xDF,0xFF,0xDF,0xFF,0xDF,0xFF,0xD8,0x03,0xDB,0xFF,0xDB,0xFF,0x5B,0xFF,0x80,0x00,

    0xDB,0xFF,0xDB,0xFF,0xDB,0xF7,0xDB,0xFB,0xD8,0x07,0xDF,0xFF,0xDF,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xFF,0x7F,0xFE,0xFB,0xFD,0xF1,0xF3,0xEB,0x8F,0xDB,0xDE,0x3B,0xFF,0x73,

    0xFF,0xF7,0x8F,0xF7,0xF7,0xD7,0xF9,0xE1,0xFC,0xF3,0xFE,0x7F,0xFE,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xEF,0xFE,0xEE,0xFE,0xED,0xFD,0xE3,0x7D,0xEB,0xBB,0x6F,0xD7,0x8F,0xE7,

    0xCF,0xCF,0xEF,0x97,0xE6,0x3B,0xEB,0x79,0xE9,0xFC,0xED,0xFD,0xEF,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xFF,0x7F,0xFE,0xFB,0xFD,0xF1,0xF3,0xEB,0x8F,0xDB,0xDE,0x3B,0xFF,0x73,

    0xFF,0xF7,0x8F,0xF7,0xF7,0xD7,0xF9,0xE1,0xFC,0xF3,0xFE,0x7F,0xFE,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xF7,0xFF,0xB6,0x07,0xB6,0xDF,0xB6,0xDF,0xB6,0xDF,0xB6,0xDF,0xB6,0xDF,

    0xB6,0xDF,0xB6,0x0F,0xB7,0xFF,0xBF,0xFB,0xBF,0xFD,0x80,0x03,0xFF,0xFF,0xFF,0xFF,

    0xEF,0xFB,0xE0,0x03,0xEE,0xFB,0xFC,0x7F,0xEB,0x9B,0xE7,0xE3,0xEF,0xFB,0xFF,0xFF,

    0xFF,0xFF,0xF3,0xE7,0xEF,0xFB,0xEE,0xFB,0xEE,0xFB,0xED,0x77,0xF3,0x8F,0xFF,0xFF,

    0xFF,0xFF,0xF7,0xFB,0xF7,0xFB,0xE0,0x03,0xFF,0xFB,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xF8,0x0F,0xF7,0x77,0xEE,0xFB,0xEE,0xFB,0xE7,0x77,0xFF,0x8F,0xFF,0xFF,

    0xFF,0xFB,0x81,0x03,0xBB,0xFB,0xB8,0x07,0x83,0x77,0xFB,0x77,0xF7,0xBF,0xEF,0x01,

    0x0F,0x3B,0xD2,0xBB,0xDD,0xBB,0xDA,0xBB,0xC6,0x81,0xDF,0x3F,0xFF,0x7F,0xFF,0xFF,

    0xFF,0xFE,0xFF,0xF2,0xFF,0xF1,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

    0xFD,0xFF,0xBD,0xFD,0xBD,0xFB,0xBD,0xF7,0xBD,0xCF,0x80,0x3F,0xBD,0xFF,0xBD,0xFF,

    0xBD,0xFF,0xBD,0xFF,0x80,0x01,0xBD,0xFF,0xBD,0xFF,0xBD,0xFF,0xBD,0xFF,0xFF,0xFF,

    0xFB,0xBF,0xF7,0x7F,0xEE,0xFF,0x10,0x00,0xBB,0xFF,0xEF,0xFD,0xEF,0x7D,0xEF,0x7D,

    0x6F,0x7D,0x80,0x01,0xAF,0x7D,0xEF,0x7D,0xEF,0x7D,0xEF,0x7D,0xEF,0xFD,0xFF,0xFF,

    0xF7,0xFD,0xF7,0xFD,0xD7,0x01,0xD7,0xFB,0xD7,0xFB,0xD4,0x07,0xD7,0x77,0xD7,0x77,

    0xF7,0x7F,0x01,0xFF,0xF6,0x1F,0xB7,0xE7,0xD7,0xFB,0xF7,0xFD,0xF7,0xF0,0xFF,0xFF,

    0xF7,0xEF,0xF7,0x9F,0xF6,0x7F,0x00,0x00,0xF6,0xFF,0xF7,0x37,0xFF,0xEF,0xF7,0xDF,

    0xF7,0x3F,0xF4,0xFF,0x00,0x00,0xF6,0x7F,0xF7,0x9F,0xF7,0xE7,0xF7,0xEF,0xFF,0xFF,

    0xFF,0xFD,0xFF,0xF3,0xC0,0x0F,0xDF,0xFF,0xDF,0xFF,0xDF,0xFF,0xDF,0xFF,0x5F,0xFF,

    0x9F,0xFF,0xDF,0xFF,0xDF,0xFF,0xDF,0xFF,0xDF,0xFF,0xDF,0xFF,0xDF,0xFF,0xFF,0xFF,

    0xF7,0xEF,0xF7,0xE7,0xF7,0xEF,0x00,0x1F,0xF7,0xDF,0xF7,0xBF,0xBF,0xAD,0xBD,0xDB,

    0xB9,0xB7,0xB4,0x6F,0xAD,0x9F,0x9C,0x7D,0xBD,0xFE,0xF8,0x01,0xFD,0xFF,0xFF,0xFF,

    0xFF,0xFE,0xFF,0xF2,0xFF,0xF1,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

    0xFF,0xFD,0xF7,0xFB,0x83,0xF7,0xF7,0xEE,0xF7,0x1E,0xF0,0x7D,0x06,0x9D,0xF6,0xEB,

    0xF6,0xF7,0xB6,0xEB,0xD6,0x1B,0xC7,0xFD,0xF7,0xFC,0xF7,0xFD,0xF7,0xFF,0xFF,0xFF,

    0xFF,0xDF,0xDF,0xDF,0xDE,0xDF,0xDC,0xDF,0xDA,0xDF,0xC6,0xDF,0x1E,0xDF,0xDE,0xDF,

    0xD0,0x00,0xDE,0xDF,0xDE,0xDF,0xDE,0xDF,0xDE,0xDF,0xDE,0xDF,0xFF,0xDF,0xFF,0xFF,

    0xFF,0xFF,0xC0,0x1F,0xDD,0xDF,0xDD,0xDF,0xDD,0xDF,0xC0,0x1F,0xF7,0xFF,0xF6,0xFF,

    0xF7,0x3F,0xF7,0xFD,0xF7,0xFE,0x00,0x01,0xF7,0xFF,0xF7,0xFF,0xF7,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xE0,0x00,0x7F,0xFF,0x9F,0xFF,0xFF,0xFF,0xF0,0x1F,0xB6,0xDF,0xB6,0xDF,

    0xB6,0xDF,0xB6,0xDF,0xB0,0x1F,0xBF,0xFD,0xBF,0xFE,0x80,0x01,0xFF,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xF1,0xF3,0xEF,0xEB,0xEF,0xDB,0xEF,0xBB,0xEE,0x7B,0xF1,0xF3,0xFF,0xFF,

    0xFF,0xFF,0xF8,0x0F,0xF7,0xF7,0xEF,0xFB,0xEF,0xFB,0xF7,0xF7,0xF8,0x0F,0xFF,0xFF,

    0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,0xF3,0xFC,0xF3,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xF3,0xE7,0xEF,0xFB,0xEE,0xFB,0xEE,0xFB,0xED,0x77,0xF3,0x8F,0xFF,0xFF,

    0xFF,0xFF,0xF8,0x0F,0xF7,0xF7,0xEF,0xFB,0xEF,0xFB,0xF7,0xF7,0xF8,0x0F,0xFF,0xFF,

    0xFF,0xFE,0xFF,0xF2,0xFF,0xF1,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

    0xD7,0xFB,0xDB,0xF7,0xDD,0xCD,0xDE,0x3D,0xD9,0x3D,0xC7,0xCB,0xFB,0xFB,0xE7,0xF7,

    0x0F,0xCF,0xE8,0x3F,0xEF,0x9F,0xEF,0xE7,0xEB,0xF3,0xE7,0xF9,0xEF,0xFB,0xFF,0xFF,

    0xFD,0xFD,0x7D,0xFB,0x8C,0x07,0xDF,0xFB,0xFF,0xFD,0xC0,0x1D,0xDF,0xBD,0xBF,0x7D,

    0xBF,0xFD,0xC0,0x05,0xDF,0xFD,0xDF,0xBD,0xDF,0xDD,0xC0,0x3D,0xFF,0xFD,0xFF,0xFF,

    0xFB,0xFF,0xFB,0xFE,0xFB,0xFD,0xFB,0xFB,0xFB,0xF7,0xFB,0xCF,0xFA,0x3F,0x01,0xFF,

    0xFA,0x7F,0xFB,0x9F,0xFB,0xEF,0xFB,0xF3,0xFB,0xF9,0xFB,0xFC,0xFB,0xFD,0xFF,0xFF,

    0xFF,0xFF,0xE7,0x6B,0xDF,0x6B,0xD7,0x57,0xD6,0xD7,0xD6,0xAD,0x54,0x6E,0x92,0xDD,

    0xD7,0x03,0xD7,0x9F,0xD6,0x6F,0xDF,0x6F,0xD7,0xF7,0xCF,0xF3,0xDF,0xF7,0xFF,0xFF,

    0xEF,0xBB,0xEB,0xBB,0xAB,0x77,0xAB,0x77,0xA0,0x2F,0xAF,0xCF,0xAF,0x9F,0x80,0x01,

    0xAF,0xBF,0x6F,0xDF,0x60,0x4F,0x6D,0x67,0x6B,0x73,0xCB,0x77,0xEE,0x7F,0xFF,0xFF,

    0xFF,0x7D,0xFE,0xFD,0xF9,0xDD,0xC7,0xDD,0xFB,0xDD,0xFC,0xDD,0xFF,0xDD,0x00,0x01,

    0xFF,0x5D,0xFE,0xDD,0xFD,0xDD,0xC3,0xDD,0xFD,0xDD,0xFE,0xFD,0xFF,0xFD,0xFF,0xFF,

    0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x05,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

    //改显示内容以下两行别改

    0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

    0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF

};

/*主函数*/

void

main()

{

    uchar i,j;

     uint m=0; //m是从字模数组里向后取数据时的计数器，用以改变显示文字的内容，及滚动显示效果

     SCON=0;

    //初始化串口为工作方式0（同步通信方式，TxD输出同步脉冲）

     lie=0x7fff; //列选标志初始化

     while(1)

    //重复循环显示

     {

        for(j=0;j<10;j++)  //j用来控制屏上1帧显示内容停留的时间，即用来控制滚动速度

         {

            for(i=1;i<=31;i+=2)

            {

                P0=0xff; //先关显示，以免164内数据移动过程中在屏上产生不良影响，大家可以把这两句去掉比较下显示效果

                P2=0xff;

                SBUF=text[i+m]; //从串口发送字模数据（为什么要先发后一个数据，看下电路应该会明白吧：）

                while(TI==0);  //等待发送完毕

                TI=0;

                SBUF=text[i+m-1]; //从串口发送数据，补全整一列数据

                while(TI==0);

                TI=0;

                P0=lie%256; //选中要显示的那列，同时等于打开了那列的显示

                P2=lie/256;

                delay();  //延时，等待一段时间，让这列显示的内容在人眼内产生“视觉暂留”现象，略知生理的人应该都知道吧。

                lie=_iror_(lie,1);  //列选标志移位，准备用来选中下一列

            }

        } //返回显示下一列，直到16列都显示完成

        m+=2; //显示内容向后移一列

        if(m>1024) //这个数据为你的字模数组的大小-32，我的是1056-32=1024

        m=0;

    }

}
