基于Spartan-6 FPGA的SP605开发板解决文案
来源:本站整理  作者:佚名  2010-06-20 10:53:11



Spartan-6 FPGA是目标设计平台,提供集成的软件和硬件,有利于设计集中力量进行新产品创新. Spartan-6 FPGA包括LX 和LXT等13个系列, 逻辑单元从3,840 到147,443, 而功耗比以前的Spartan降低一半.Spartan-6采用45nm低功耗铜工艺,提供最佳的成本,功耗和性能之间的平衡,1.2V内核, 3.3V到1.2V I/O标准, 支持DDR, DDR2, DDR3和LPDDR 存储器,数据速率高达800Mbps(峰值带宽12.8Gbps),可用在汽车娱乐系统, 高清视频平板显示器系统以及网络通信的监视图像捕捉和分析引擎系统.本文介绍了Spartan-6 FPGA主要特性,目标应用框图,以及Spartan-6 FPGA SP605评估板主要特性,方框图以及详细电路图.

The Spartan®-6 family provides leading system integration capabilities with the lowest total cost for high-volume applications. The thirteen-member family delivers expanded densities ranging from 3,840 to 147,443 logic cells, with half the power consumption of previous Spartan families, and faster, more comprehensive connectivity. Built on a mature 45 nm low-power copper process technology that delivers the optimal balance of cost, power, and performance, the Spartan-6 family offers a new, more efficient, dual-register 6-input lookup table (LUT) logic and a rich selection of built-in system-level blocks. These include 18 Kb (2 x 9 Kb) block RAMs, second generation DSP48A1 slices, SDRAM memory controllers, enhanced mixed-mode clock management blocks, SelectIO™ technology, poweroptimized high-speed serial transceiver blocks, PCI Express® compatible Endpoint blocks, advanced system-level power management modes, auto-detect configuration options, and enhanced IP security with AES and Device DNA protection. These features provide a lowcost programmable alternative to custom ASIC products with unprecedented ease of use. Spartan-6 FPGAs offer the best solution for high-volume logic designs, consumer-oriented DSP designs, and cost-sensitive embedded applications. Spartan-6 FPGAs are the programmable silicon foundation for Targeted Design Platforms that deliver integrated software and hardware components that enable designers to focus on innovation as soon as their development cycle begins.

Spartan-6 FPGA主要特性:

• Spartan-6 Family:

• Spartan-6 LX FPGA: Logic optimized

• Spartan-6 LXT FPGA: High-speed serial connectivity

• Designed for low cost

• Multiple efficient integrated blocks

• Optimized selection of I/O standards

• Staggered pads

• High-volume plastic wire-bonded packages

• Low static and dynamic power

• 45 nm process optimized for cost and low power

• Hibernate power-down mode for zero power

• Suspend mode maintains state and configuration with multi-pin wake-up, control enhancement

• Lower-power 1.0V core voltage (LX FPGAs, -1L only)

• High performance 1.2V core voltage (LX and LXT FPGAs, -2, -3, and -4 speed grades)

• Multi-voltage, multi-standard SelectIO™ interface banks

• Up to 1,050 Mb/s data transfer rate per differential I/O

• Selectable output drive, up to 24 mA per pin

• 3.3V to 1.2V I/O standards and protocols

• Low-cost HSTL and SSTL memory interfaces

• Hot swap compliance

• Adjustable I/O slew rates to improve signal integrity

• High-speed GTP serial transceivers in the LXT FPGAs

• Up to 3.125 Gb/s

• High-speed interfaces including: Serial ATA, Aurora,1G Ethernet, PCI Express, OBSAI, CPRI, EPON, GPON, DisplayPort, and XAUI

• Integrated Endpoint block for PCI Express designs (LXT)

• Low-cost PCI® technology support compatible with the 33 MHz, 32- and 64-bit specification.

• Efficient DSP48A1 slices

• High-performance arithmetic and signal processing

• Fast 18 x 18 multiplier and 48-bit accumulator

• Pipelining and cascading capability

• Pre-adder to assist filter applications

• Integrated Memory Controller blocks

• DDR, DDR2, DDR3, and LPDDR support

• Data rates up to 800 Mb/s (12.8 Gb/s peak bandwidth)

• Multi-port bus structure with independent FIFO to reduce design timing issues

• Abundant logic resources with increased logic capacity

• Optional shift register or distributed RAM support

• Efficient 6-input LUTs improve performance and minimize power

• LUT with dual flip-flops for pipeline centric applications

• Block RAM with a wide range of granularity

• Fast block RAM with byte write enable

• 18 Kb blocks that can be optionally programmed as two independent 9 Kb block RAMs

• Clock Management Tile (CMT) for enhanced performance

• Low noise, flexible clocking

• Digital Clock Managers (DCMs) eliminate clock skew and duty cycle distortion

• Phase-Locked Loops (PLLs) for low-jitter clocking

• Frequency synthesis with simultaneous multiplication, division, and phase shifting

• Sixteen low-skew global clock networks

• Simplified configuration, supports low-cost standards

• 2-pin auto-detect configuration

• Broad third-party SPI (up to x4) and NOR flash support

• Feature rich Xilinx Platform Flash with JTAG

• MultiBoot support for remote upgrade with multiple bitstreams, using watchdog protection

• Enhanced security for design protection

• Unique Device DNA identifier for design authentication

• AES bitstream encryption in the larger devices

• Faster embedded processing with enhanced, low cost, MicroBlaze™ soft processor

• Industry-leading IP and reference designs

Spartan-6 FPGA系列特性表:


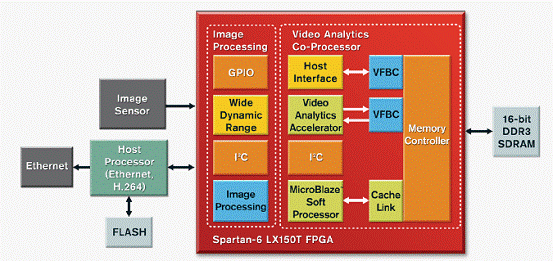

Spartan®-6 FPGA应用:

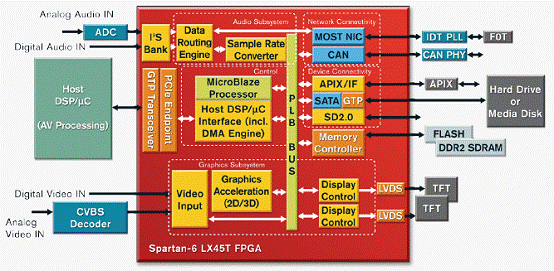

In-Car Infotainment System

Serving as a companion to the host processor, a single Spartan-6 LX45T FPGA supports audio/video acceleration, graphics subsystem, and vehicle networking functions.

图1.汽车娱乐系统

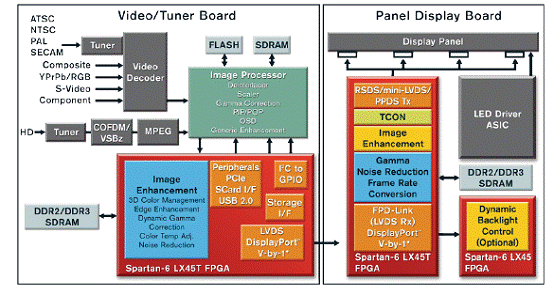

High-Resolution Video Flat-Panel Display with Dynamic Backlight Control Achieve higher image quality while reducing power and cost using Spartan-6 FPGAs withintegrated serial I/O capabilities.

图2.带动态背光控制的高清视频平板显示器系统
