Surveillance Image Capture and Analytics Engine Integrate sensor interfacing, video analytics, image enhancement and network interfacing in a single Spartan-6 LX150T FPGA.

图3.监视图像捕捉和分析引擎系统

Spartan®-6 FPGA SP605评估板

The Spartan®-6 FPGA SP605 Evaluation Kit conveniently delivers all the basic components for developing broadcast, wireless communications, automotive, and other cost- and power-sensitive applications that require transceiver capabilities in one ackage. Along with the evaluation board, cables, and documentation, the SP605 Evaluation Kit provides an integration of hardware, software, intellectual property (IP), and pre-verified reference designs so development can begin right out of the box.

The SP605 Evaluation Kit provides a flexible environment for higher-level system design, including applications that implement features such as high-speed serial transceivers, PCI Express®, DVI, and/or DDR3. The SP605 evaluation board includes an industry-standard FPGA Mezzanine Card (FMC) connector for scaling and customizing to specific applications and markets. The integration of Xilinx development tools help streamline the creation of systems that adhere to complex requirements.

This guide provides steps to setup the SP605 hardware and run a diagnostic demonstration that exercises a number of basic board features. It introduces a more complex Base Reference Design that exercises key features of the Spartan-6 FPGA. This guide also provides steps for installing the Xilinx® ISE® Design Suite: Logic Edition software, obtaining updates, and generating a license.

SP605评估板包括:

• Spartan-6 FPGA SP605 Evaluation Board

• ISE Design Suite Logic Edition: (device-locked) for Spartan-6 LX45T FPGA

♦ Includes ChipScope™ Pro software and the ChipScope Pro Serial I/O Toolkit

♦ Includes PlanAhead™ Design Analysis Tool

♦ Timing Driven Place and Route, SmartGuide™, and SmartXplorer Technology

• Documentation

♦ Hardware Setup Guide

♦ Getting Started Guide

♦ Hardware User Guide

♦ Reference Design User Guide

• Schematics and PCB files

• Universal 12V power supply

• Cables

♦ (2) USB

♦ Ethernet

♦ DVI to VGA adapter

• Reference Designs and Demonstrations

♦ Board Diagnostic Demonstration

♦ Base Reference Design featuring DSP48, Ethernet, memory, and serial transceiver integration

♦ MultiBoot Reference Design, featuring fail-safe configuration

♦ Integrated Memory Controller Reference Design

♦ Integrated Bit Error Ratio (IBERT) Reference Design

♦ PCIe® x1 Gen1 Reference Design

• Reference designs, demonstrations, documentation, and applications delivered on USB Flash drive to get started quickly

SP605评估板主要特性:

Spartan-6 FPGA

• XC6SLX45T-3FGG484 device

Configuration

• Onboard JTAG configuration circuitry

• 8 MB Quad SPI Flash

• 32 MB Parallel (BPI) Flash

• System ACE CF 2 GB CompactFlash (CF) card Memory

• 128 MB DDR3 Component Memory

• 32 MB Parallel (BPI) Flash (Also available for configuration)

• 8 Kb IIC EEPROM

• 128 MB Quad SPI Flash (Also available for configuration) Communications and Networking

• 10/100/1000 Tri-Speed Ethernet

• SFP transceiver connector

• GTP port (TX, RX) with four SMA connectors

• USB To UART bridge

• PCI Express x1 edge connector Expansion Connectors

• FMC LPC connector (1 GTP transceiver, 68 single-ended or 34 differential userdefined
signals)

• User GPIO with two SMA connectors

• 4 user I/O (1 x 6 header) Clocking

• 200 MHz oscillator (differential)

• 27 MHz Socketed oscillator (single-ended)

• SMA connectors for external clock (differential)

• GTP reference clock port with two SMA connectors Display

• Video - DVI / VGA

• 16 x 2 LCD character display

• 4 LEDs Control

• 4 Pushbuttons

• 4 DIP switches Power

• 12V wall adapter or ATX

• Voltage and current measurement capability of 2.5V, 1.5V, and 1.2V supplies

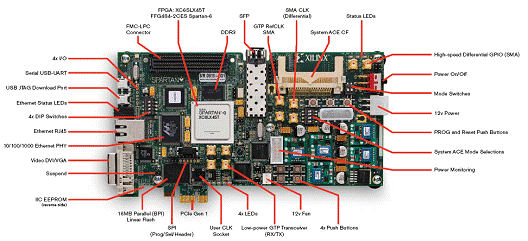

图4.Spartan®-6 FPGA SP605评估板外形图

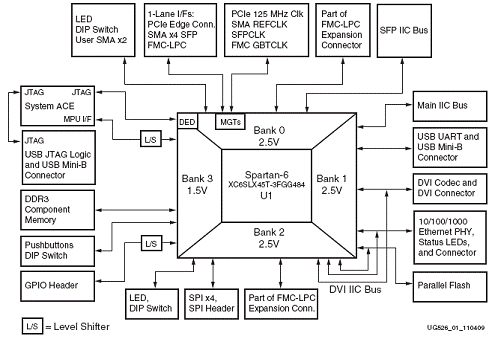

图5.Spartan®-6 FPGA SP605评估板方框图和外设

图6. SP605评估板板载电源稳压器框图
