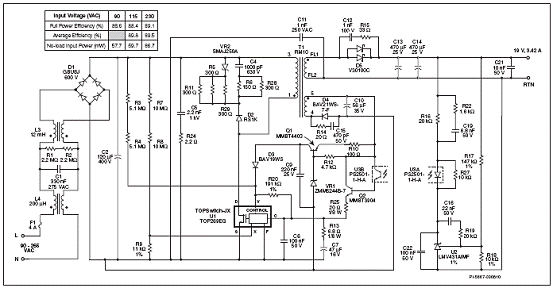

TOPSwitch-JX系列(TOP264-271)集成了725V功率MOSFET,高压开关电流源,多模式PWM控制,热关断电路,故障保护和其它控制电路, 265 VAC电压下无负载的功耗低于100mW.本文介绍了TOPSwitch-JX系列(TOP264-271)主要特性, 方框图, 通用输入高效19V 65W反激电源电路图和采用TOP265EG的12V 30W高效待机电源设计案例的电路图和所用材料清单.
TOPSwitch-JX TOP264-271 cost effectively incorporates a 725 V power MOSFET, high voltage switched current source, multi-mode PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.
TOPSwitch-JX 系列主要特性:EcoSmart® - Energy Efficient
• Energy efficient over entire load range
• No-load consumption below 100 mW
at 265 VAC
• Up to 750 mW standby output power for 1 W input
at 230 VAC
High Design Flexibility for Low System Cost
• Multi-mode PWM control maximizes efficiency
at all loads
• 132 kHz operation reduces transformer and power supply size
• 66 kHz option for highest efficiency requirements
• Accurate programmable current limit
• Optimized line feed-forward for line ripple rejection
• Frequency jittering reduces EMI filter cost
• Fully integrated soft-start for minimum startup stress
• 725 V rated MOSFET
• Simplifies meeting design derating requirements
Extensive Protection Features
• Auto-restart limits power delivery to <3% during overload faults
• Output short-circuit protection (SCP)
• Output over-current protection (OCP)
• Output overload protection (OPP)
• Output overvoltage protection (OVP)
• User programmable for hysteretic/latching shutdown
• Simple fast AC reset
• Primary or secondary sensed
• Line undervoltage (UV) detection prevents turn-off glitches
• Line overvoltage (OV) shutdown extends line surge withstand
• Accurate thermal shutdown with large hysteresis (OTP)
• Heat transfer to both PCB and heat sink
• Optional external heat sink provides thermal impedance equivalent to a TO-220
• eSIP®-7C package:
• Vertical orientation for minimum PCB footprint
• Simple heat sink mounting using clip provides thermal impedance equivalent to a TO-220
• Extended creepage to DRAIN pin
• Heat sink is connected to SOURCE for low EMI

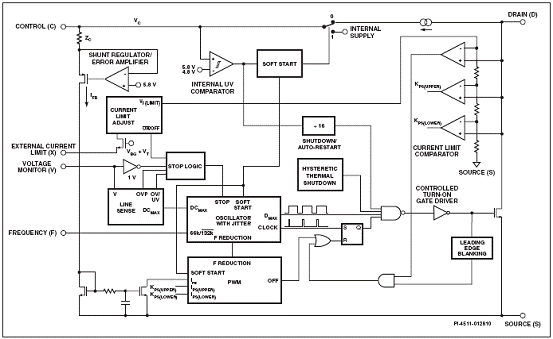

图1.TOPSwitch-JX系列功能方框图(E 和V 封装).
