图1.MIC2826功能方框图

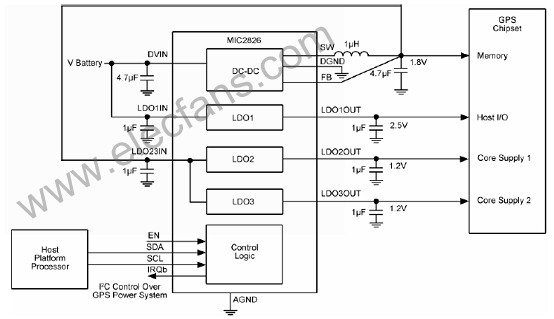

图2.MIC2826在GPS子系统的应用电路

MIC2826 评估板

The MIC2826 evaluation kit includes:

• MIC2826 Evaluation Board

• CD-ROM including:

– MIC2826/7 Evaluation Software

– Evaluation User Guide

Third party hardware required:

• USB-to-I2C Interface Board (dongle)

• USB Peripheral Cable

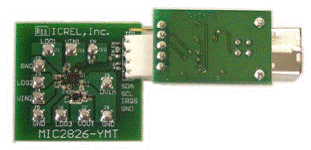

图3.MIC2826 评估板外形图

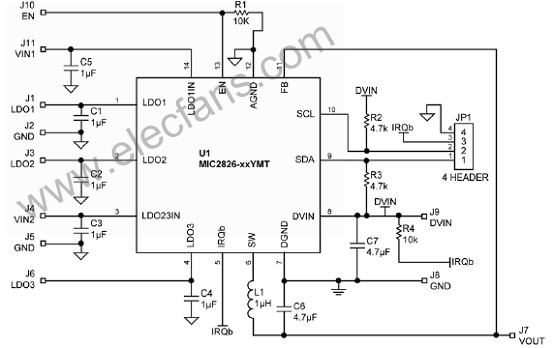

图4.MIC2826 评估板电路图

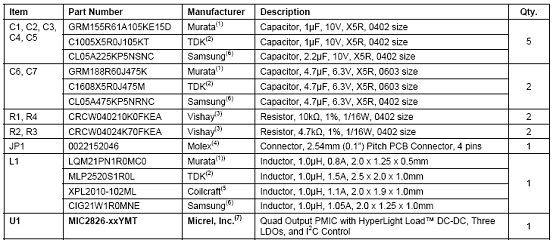

MIC2826 评估板材料清单(BOM):
