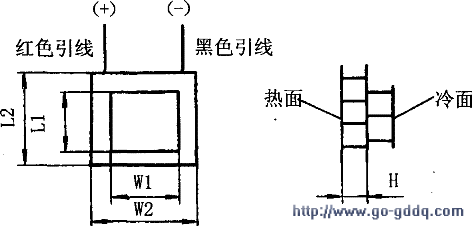

| 热面温度Th=27℃时 | 尺寸(mm) | ||||||||
型号 |
最大温 |
最大温 |
最大致 |
最大温 |
顶部 |
底部 |
高 | ||
| 差电流 (A) |
差电压 (V) |
冷功率 (W) |
差Tmax (℃) |
W1 |
Ll |
W2 |
L2 |
H | |
| TES2—00917 | 1.7 |
0.9 |
0.3 |
90 |
2.5 |
2.5 |
4.0 |
4.0 |
3.8 |
| TES2-02415 | 1.5 | 2.1 | 1.0 | 85 | 4.0 | 4.0 | 6.6 | 6.6 | 3.8 |
| TES2-04820 | 2.1 | 3.8 | 3.11 | 81 | 11.5 | 11.5 | 15 | 15 | 6.6 |
| TEC2-04804 | 4.0 | 3.8 | 6.04 | 81 | 15 | 15 | 20 | 20 | 7.2 |
| TEC2-08803 | 3.1 |
8.4 |
5.2 |
90 |
15 |
15 |
30 |
30 |
9.2 |
| TEC2-08805 | 4.6 | 8.4 | 9.0 | 88 | 15 | 15 | 30 | 30 | 7.4 |
| TEC2-10204 | 4.3 | 8.6 | 12.6 | 85 | 20 | 20 | 30 | 30 | 7.2 |
| TEC2-14403 | 3.5 | 15 | 6.0 | 92 | 15 | 15 | 40 | 40 | 9.2 |
| TEC2-15803 | 3.2 | 8.4 | 12.0 | 90 | 20 | 20 | 40 | 40 | 9.2 |
| TEC2-18006 | 6.0 | 15.5 | 34.51 | 83 | 40 | 40 | 40 | 40 | 7.5 |
| TES3-05518 | 1.8 | 3.8 | 1.52 | 96 | 8.0 | 8.0 | 15 | 15 | 9.9 |
| TES3-22918 | 1.8 | 15.4 | 6.48 | 96 | 15 | 15 | 30 | 30 | 9.5 |
| TEC3-11904 | 3.5 | 7.7 | 6.5 | 97 | 15 | 15 | 30 | 30 | 40.4 |
| TEC3-16503 | 3.0 | 14 | 6.5 | 105 | 10 | 10 | 40 | 40 | 13.6 |
| TEC3-22904 | 3.5 | 15.4 | 12.6 | 96 | 20 | 20 | 40 | 40 | 10.4 |
| TES4-12617 | 1.7 | 7.9 | 1.66 | 110 | 8.0 | 8.0 | 23 | 23 | 12.5 |
| TES4-24613 | 1.3 | 14.6 | 2.87 | 107 | 15 | 15 | 30 | 30 | 14.0 |
| TEC4-24603 | 3.1 | 14.6 | 6.84 | 107 | 11.5 | 11.5 | 40 | 40 | 13.8 |
| TES5-25316 | 1.6 | 14.5 | 1.74 | 118 | 8.0 | 8.0 | 30 | 30 | 15.4 |
| TEC5-25303 | 3.0 | 14.5 | 3.37 | 118 | 1O | 10 | 40 | 40 | 16.9 |
| TEC6-25503 | 3.O | 14.5 | 1.22 | 131 | 5.0 | 5.0 | 40 | 40 | 20.1 |
