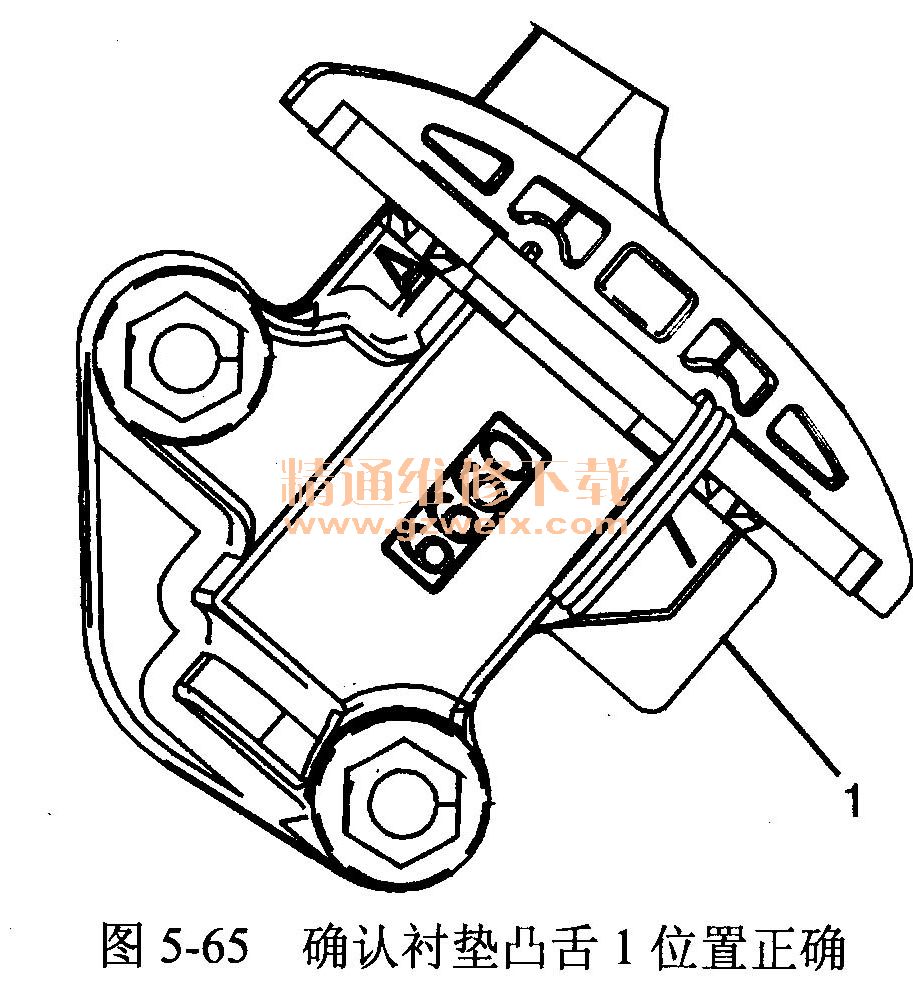

10.确认主凸轮轴传动链条张紧器衬垫的凸舌1位置正确,如图5-65所示。

11.拉出专用工具EN-46112,松开张紧器柱塞,以释放主凸轮轴传动链条张紧器,如图5-66所示。

12.检查主凸轮轴传动链条张紧器和左侧次凸轮轴传动链条张紧器的正时标记1与2, 3与4, 5与6, 7与8, 9与10及11与12都分别对准,如图5-67所示。

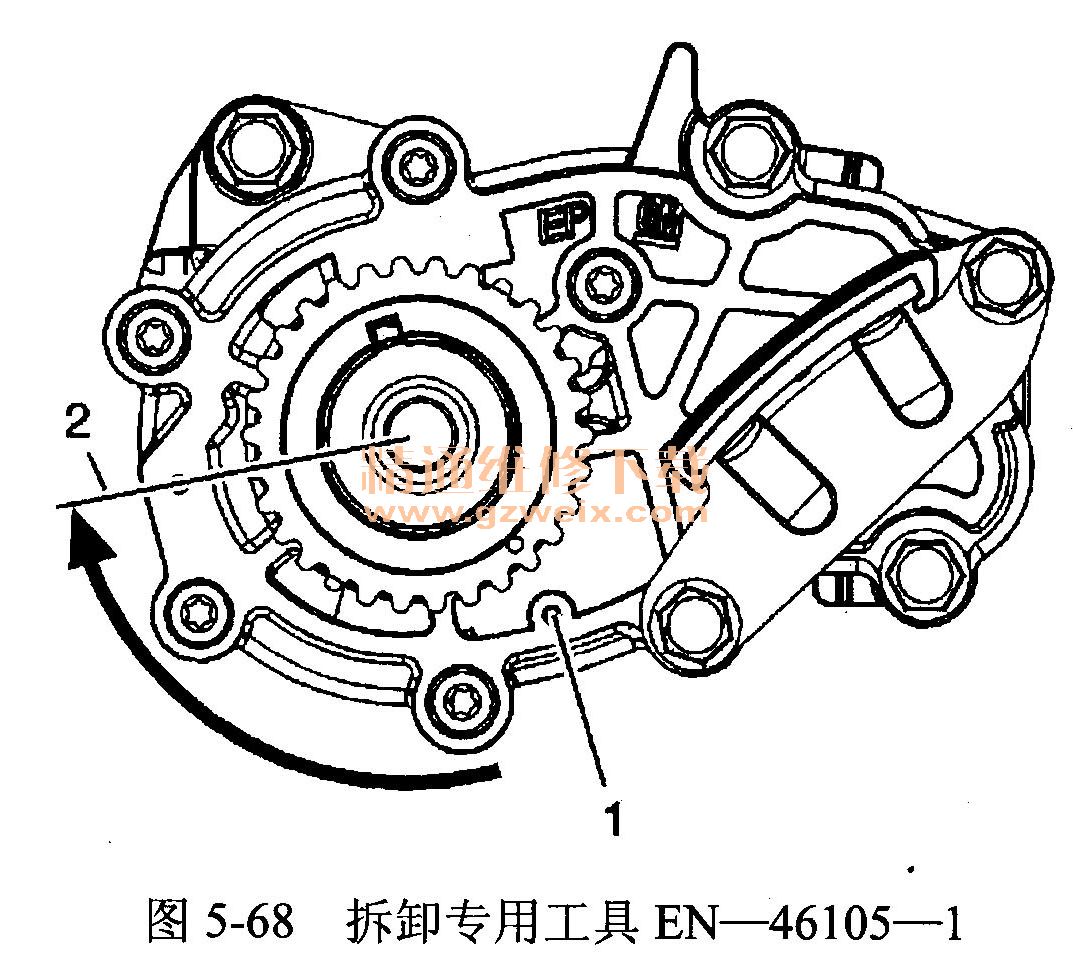

13.从左凸轮轴的后部拆卸专用工具EN-46105-1,如图5-68所示。

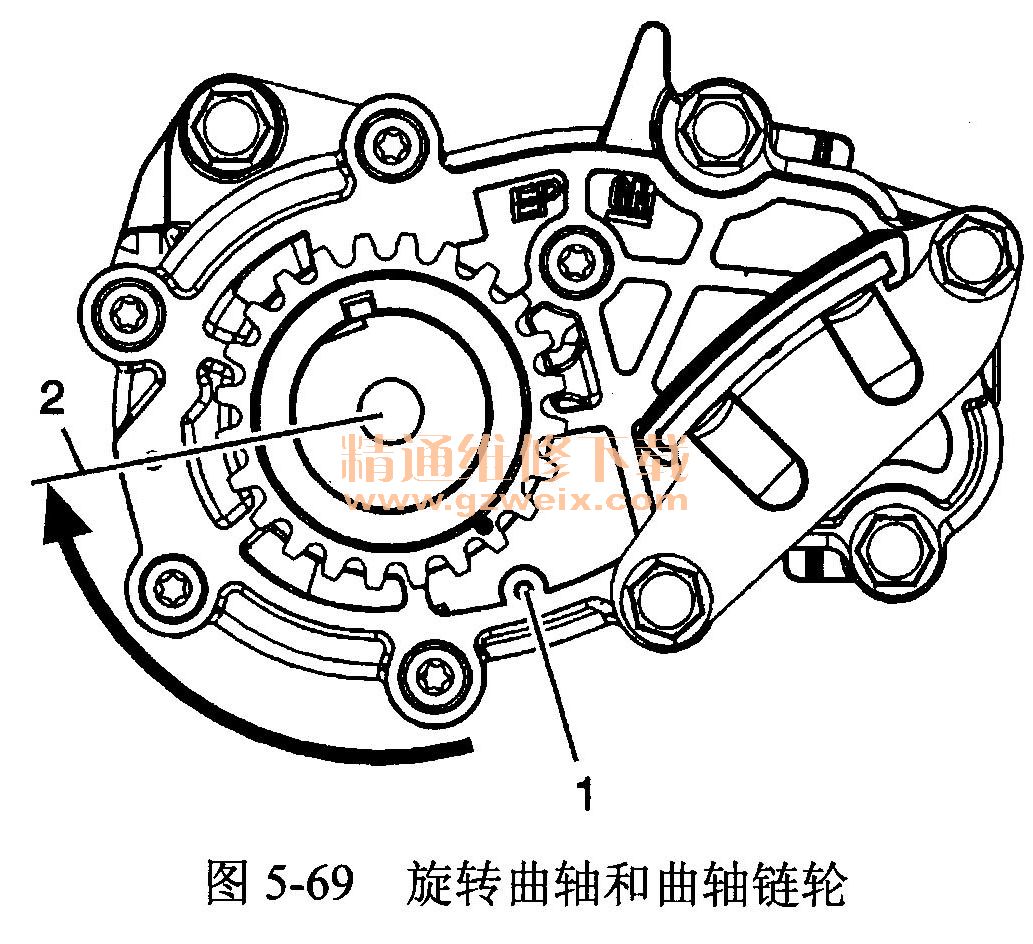

14.使用专用工具EN-46111将曲轴和曲轴链轮从第一阶段定位位置1旋转到第二阶段定位位置2, 115°曲轴转角,以能安装右侧次凸轮轴传动链条部件,如图5-69所示。

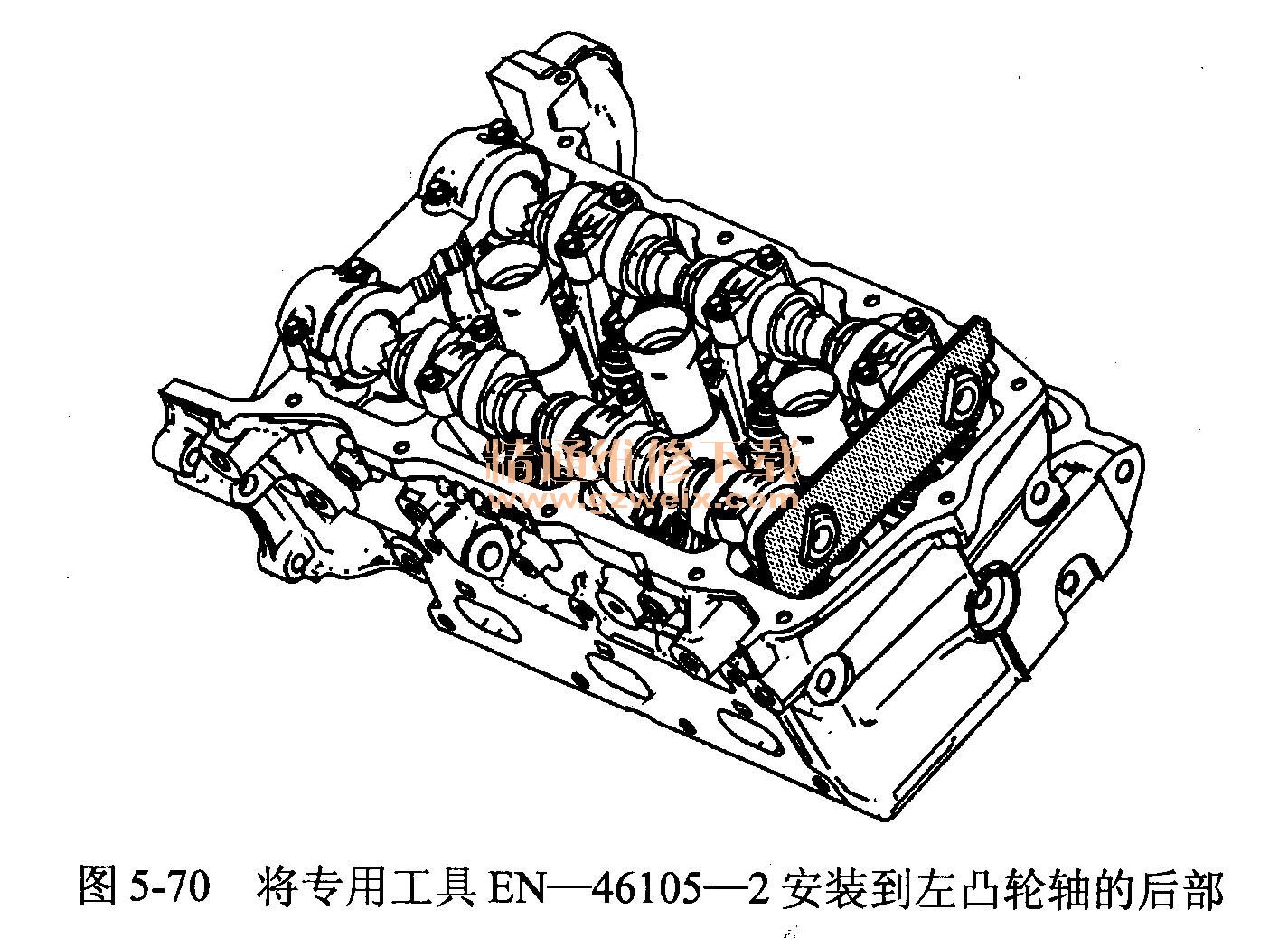

15.将专用工具EN-46105-2安装到左凸轮轴的后部,如图5-70所示。

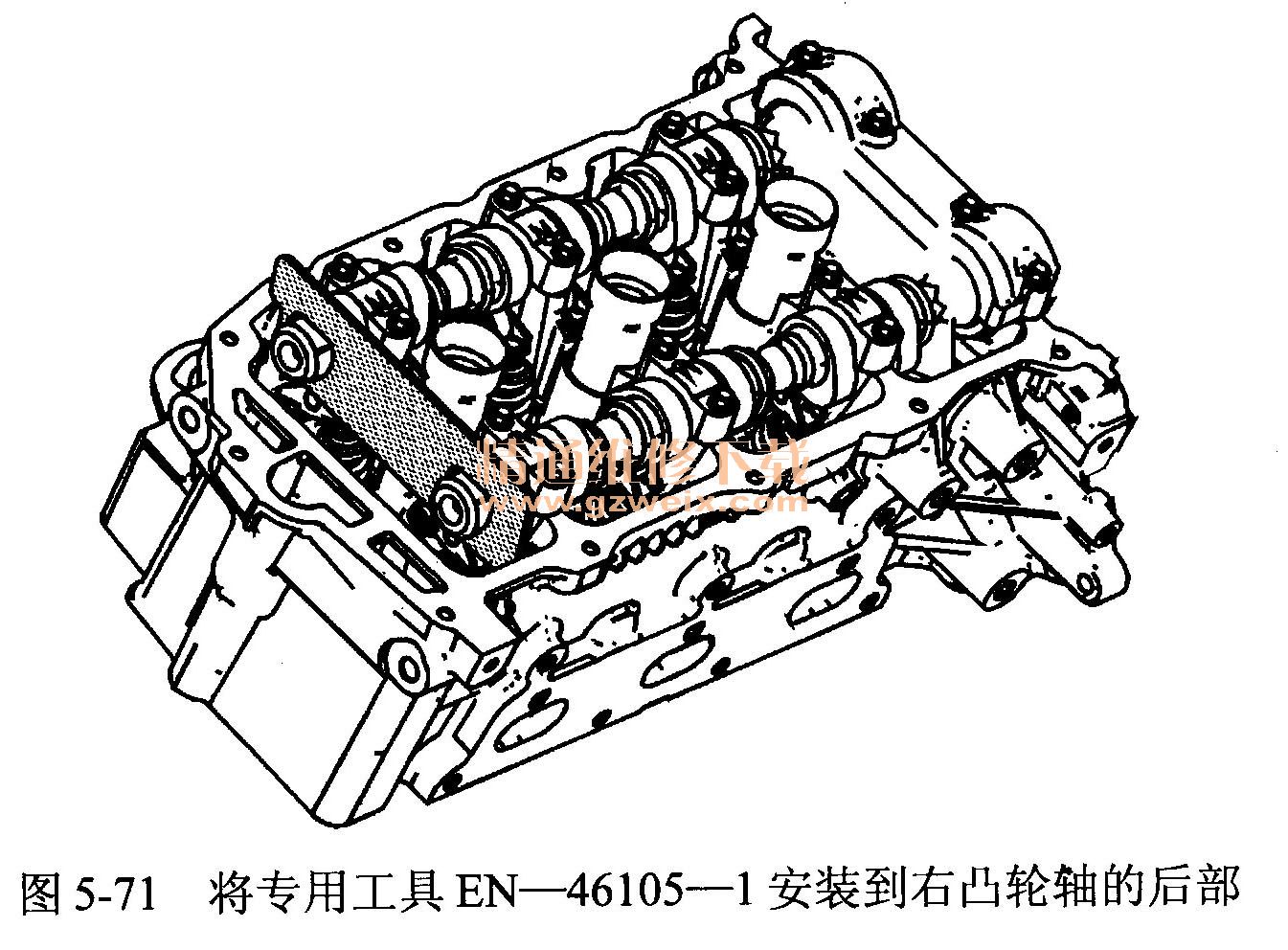

16.将专用工具EN-46105-1安装到右凸轮轴的后部,如图5-71所示。
